Product Properties

Measured optical, thermal and acoustic values for Gallina multiwall sheets and modular panel systems, tested to EN 16153.

Up to 85%Light transmission, clear PoliCarb®

1.5 W/m²KLowest U value, arcoPlus® 6206

20 dBAcoustic insulation, arcoPlus® 6166 / 6206

PoliCarb® multiwall sheets – optical and thermal properties (EN 16153)
Colour	Light transmission LT %	Solar factor SF %	Shading coefficient SC
Policarb 2W – 6 mm U = 3.6 W/m²K
Crystal	82	83	0.99
Bronze	63	75	0.83
Opal	50	66	0.76
Policarb 2W – 8 mm U = 3.3 W/m²K
Crystal	82	88	1.01
Bronze	65	75	0.86
Opal	50	65	0.75
Policarb 2W – 10 mm U = 3.0 W/m²K
Crystal	81	87	1.00
Bronze	65	75	0.86
Opal	50	66	0.74
Policarb 2W – 16 mm WIDE U = 2.5 W/m²K
Crystal	85	90	0.03
Bronze	65	70	0.80
Opal	50	65	0.74
Policarb 3W – 10 mm U = 2.7 W/m²K
Crystal	74	80	0.92
Bronze	65	72	0.83
Opal	52	62	0.71
Policarb 3W – 16 mm U = 2.3 W/m²K
Crystal	74	80	0.92
Bronze	40	55	0.83
Opal	52	57	0.66
Policarb 4W – 6 mm U = 3.1 W/m²K
Crystal	79	82	0.94
Opal	45	53	0.61
Policarb 4W – 8 mm U = 2.7 W/m²K
Crystal	79	82	0.94
Opal	50	53	0.61
Policarb 4W – 10 mm U = 2.5 W/m²K
Crystal	79	82	0.94
Opal	45	53	0.61
Policarb 5W – 16 mm RDC U = 2.1 W/m²K
Crystal	66	77	0.80
Bronze	30	45	0.52
Opal	40	55	0.63

arcoPlus® modular systems – optical, thermal and acoustic properties (EN 16153)
Colour	Light transmission LT %	Solar factor SF %	Shading coefficient SC

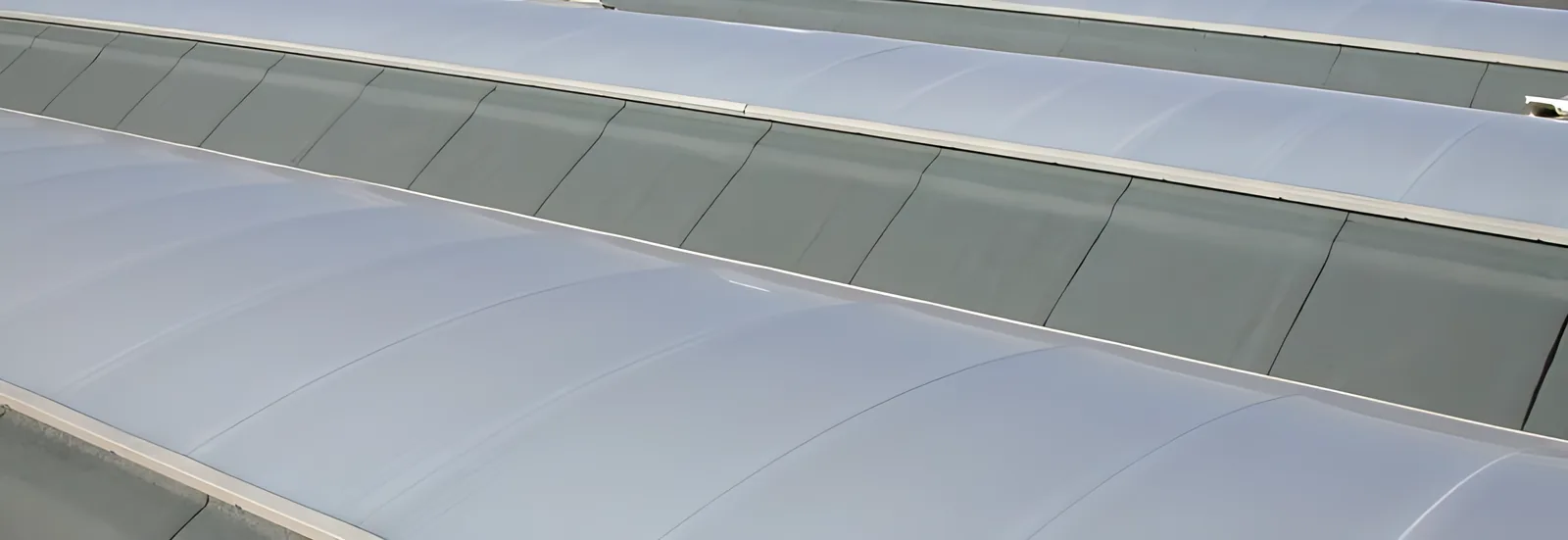

arcoPlus 684 U = 2.6 W/m²K · 18 dB
Crystal	72	77	0.77
Green	46	54	–
Bronze	45	58	–
Opal	47	52	0.52
arcoPlus 6104 U = 2.4 W/m²K · 18 dB
Crystal	72	77	0.77
Green	46	54	0.54
Bronze	45	58	0.58
Opal	47	52	0.52
arcoPlus 6124 U = 2.2 W/m²K · 19 dB
Crystal	72	77	0.77
Green	46	54	0.54
Bronze	45	58	0.58
Opal	47	52	0.52
arcoPlus 6166 U = 1.62 W/m²K · 20 dB
Crystal	65	68	0.67
Green	46	54	0.47
Bronze	30	40	0.41
Opal	40	45	0.45
arcoPlus 6206 U = 1.5 W/m²K · 20 dB
Crystal	65	68	0.67
Green	48	53	0.47
Bronze	30	40	0.41
Opal	40	45	0.45

Reading the values

Light transmission (LT): Share of visible light that passes through the sheet.
Solar factor (SF): Ratio between the total energy transmitted inside and the total solar radiation.
Shading coefficient (SC): Solar heat gain compared with a reference clear glass; lower means less heat.
Thermal transmittance (U): Rate of heat loss through one square metre per degree of temperature difference; lower insulates better.

Physical and mechanical properties of the material are on What is Polycarbonate?
