Modular system of bi-protected multiwall polycarbonate for translucent roofing applications.

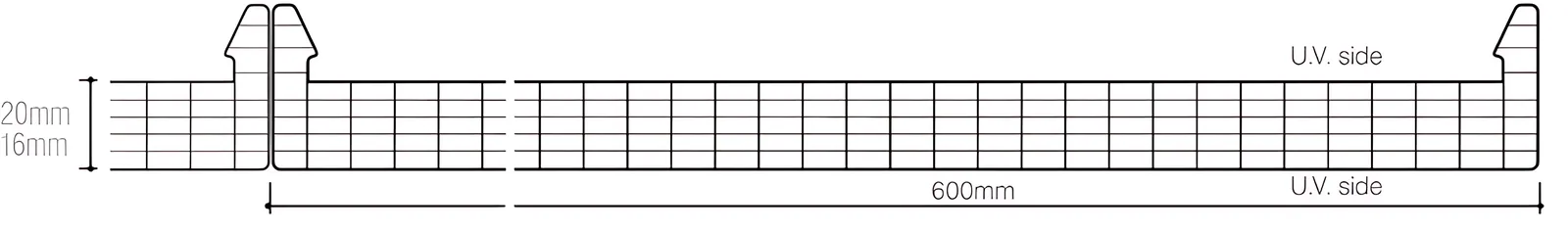

arcoPlus® 626 Reversò and arcoPlus® 6166 Reversò are modular systems of co-extruded six-wall polycarbonate panels with a thickness of 20 mm and 16 mm. These are fixed to the existing structure using specific anchor brackets. The panels are joined together by a protected polycarbonate cover plate assembled using a click-on system, or by an aluminium connector, for a perfectly watertight seal.
Product profile
arcoPlus Reversò 6166-626 catalogue (PDF)
Specifications
| Thickness | 16 – 20 mm |
|---|---|
| Structure | 6 walls |
| Effective modular width | 600 mm |
| Panel length | No limit |
| Colours available | Please contact us for details |
| Thermal insulation | 1.62 | 1.5 W/m²K |
|---|---|
| Acoustic insulation | 20 dB |
| Linear thermal expansion | 0.065 mm/m°C |
| Temperature range | -40°C to +120°C |
| UV protection | 2 sides, co-extrusion |
| Fire reaction EN 13501 | EuroClass B-s1,d0 |
| Colour | Light transmission (LT) % | Solar factor (SF) % | Shading coefficient (SC) |
|---|---|---|---|
| Clear | 65 | 68 | 0.78 |
| Blue | 48 | 53 | 0.61 |
| Green | 48 | 53 | 0.61 |
| Bronze | 30 | 50 | 0.57 |
| Opal | 40 | 45 | 0.52 |
| Ice | 52 | 58 | – |
| Grey | 20 | 22 | – |
| Colour | Light transmission (LT) % | Solar factor (SF) % | Shading coefficient (SC) |
|---|---|---|---|
| Clear | 65 | 68 | 0.78 |
| Blue | 48 | 53 | 0.61 |
| Green | 48 | 53 | 0.61 |
| Bronze | 30 | 50 | 0.57 |
| Opal | 40 | 45 | 0.52 |
| Ice | 52 | 58 | – |
| Grey | 20 | 22 | – |
Advantages
Advantages
- Light transmission
- Resistance to UV rays and to hail
- Heat insulation
- Bendability R.min = 2.5 m
Applications
- Roofing
- Curved roofing
- Vertical windows
- Vertical façades
Easy and low-cost installation
To ensure compliance with snow load and negative wind load resistance requirements, anchor brackets should be fitted for each purlin.

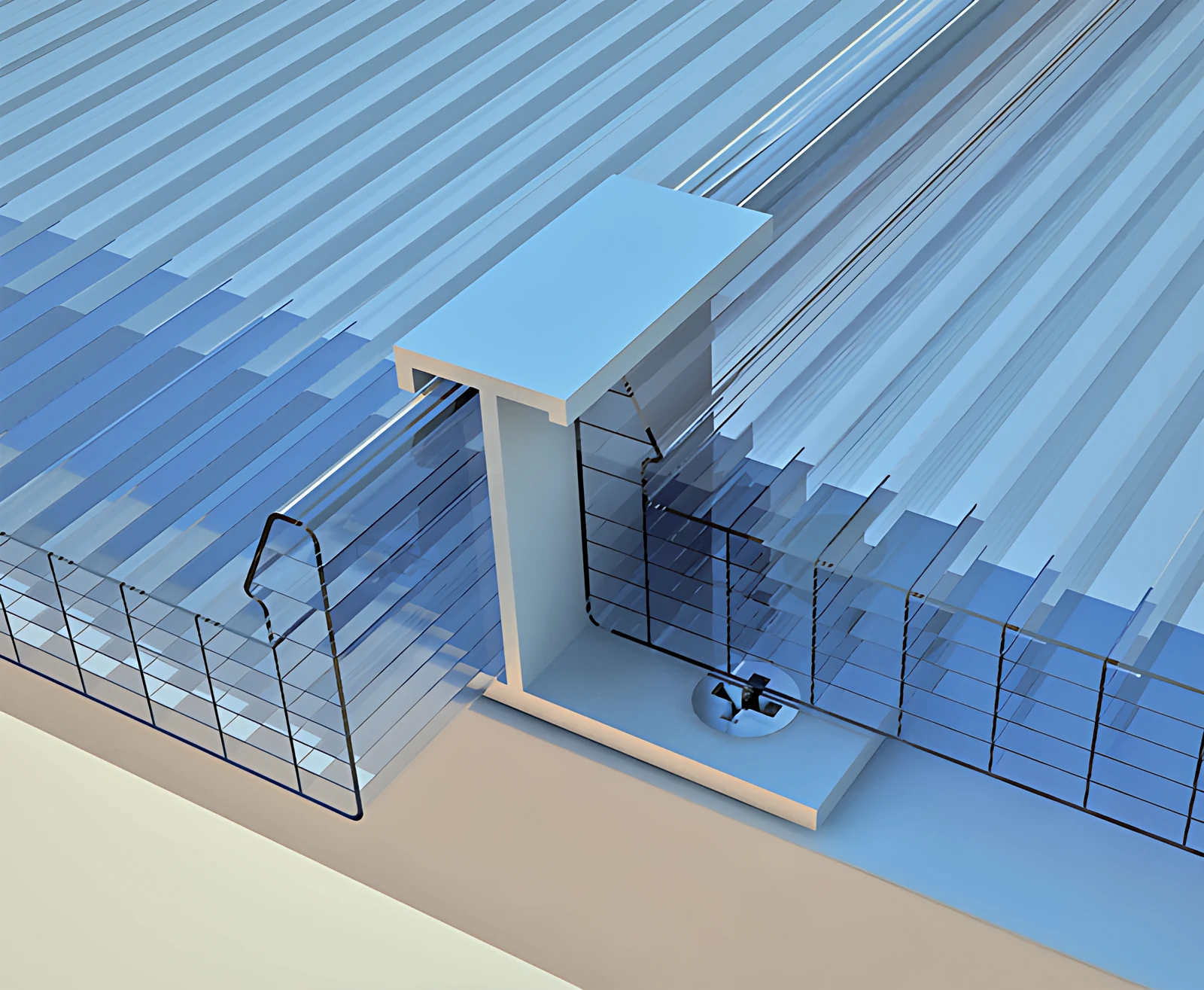

The polycarbonate panels are fastened to the underlying structure using specific brackets, which must be anchored to the purlins using suitable self-drilling/self-tapping screws (on metal structures) and tap bolts (for wooden structures). These screws and bolts are not supplied.
Different connector profiles can be used, depending on the required load specifications.

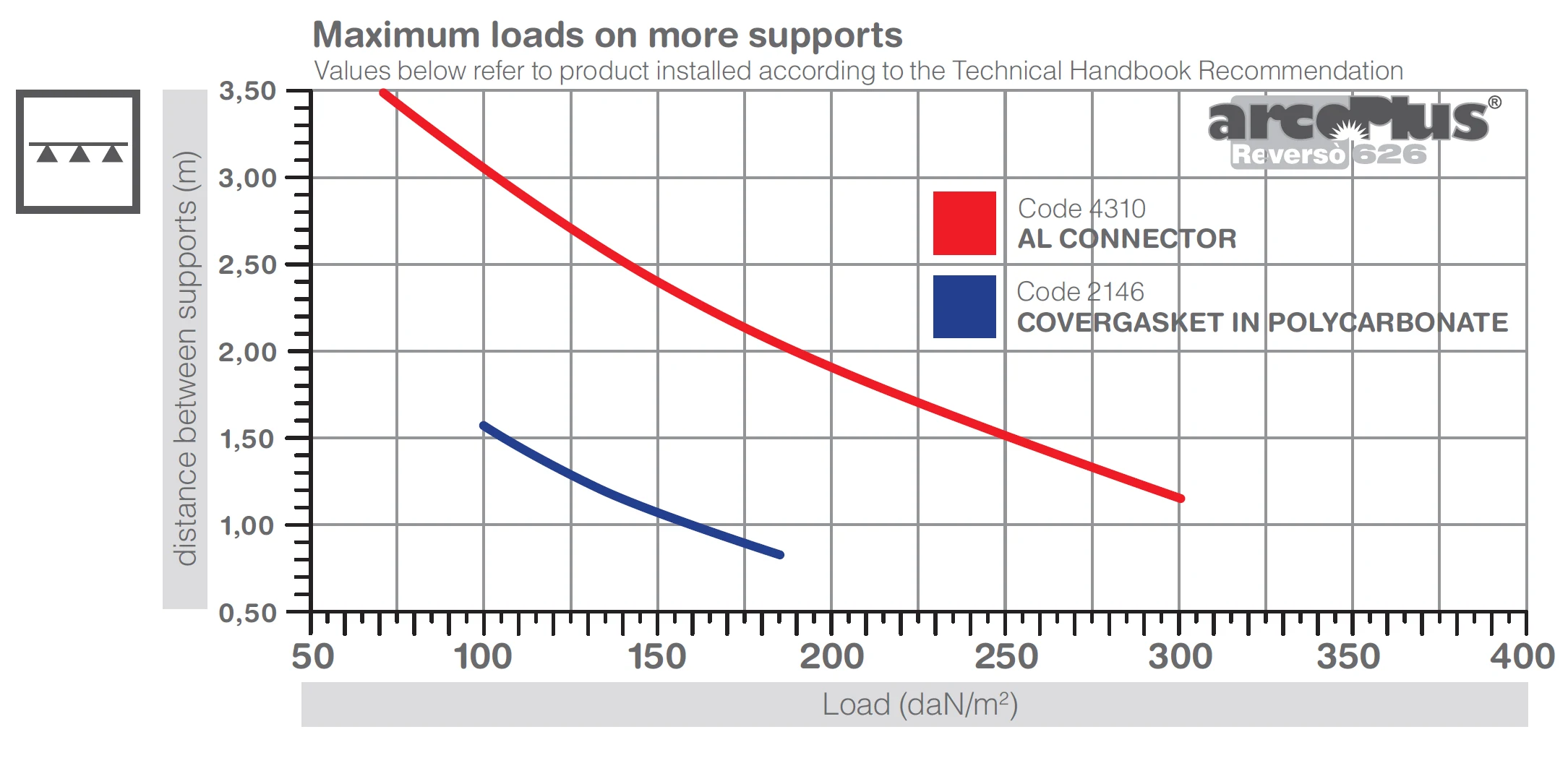

Load resistance

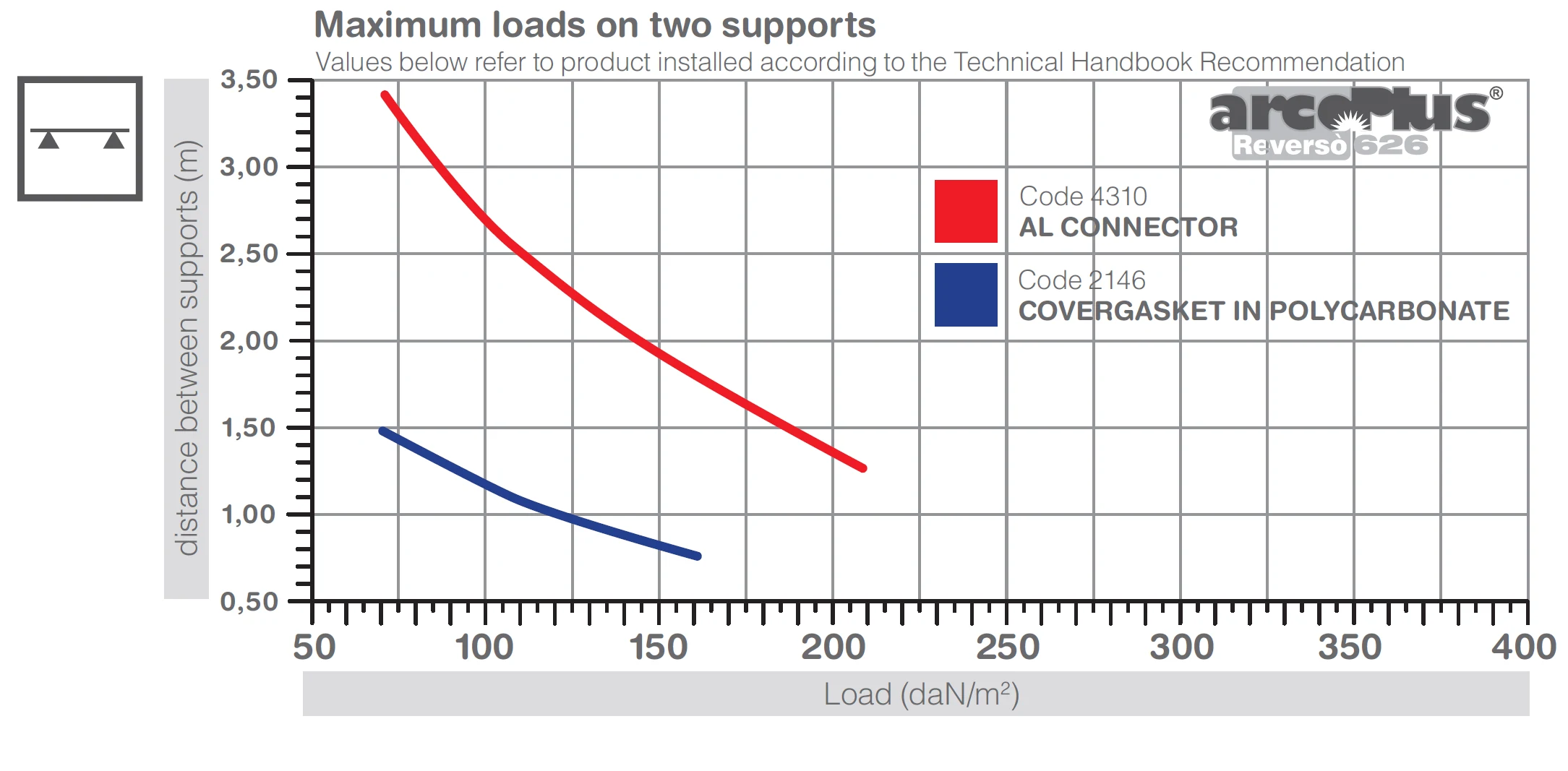

Maximum loads with the aluminium connector (code 4310) and the polycarbonate covergasket (code 2146). Values refer to product installed according to the Technical Handbook recommendations.
Complete roofing system

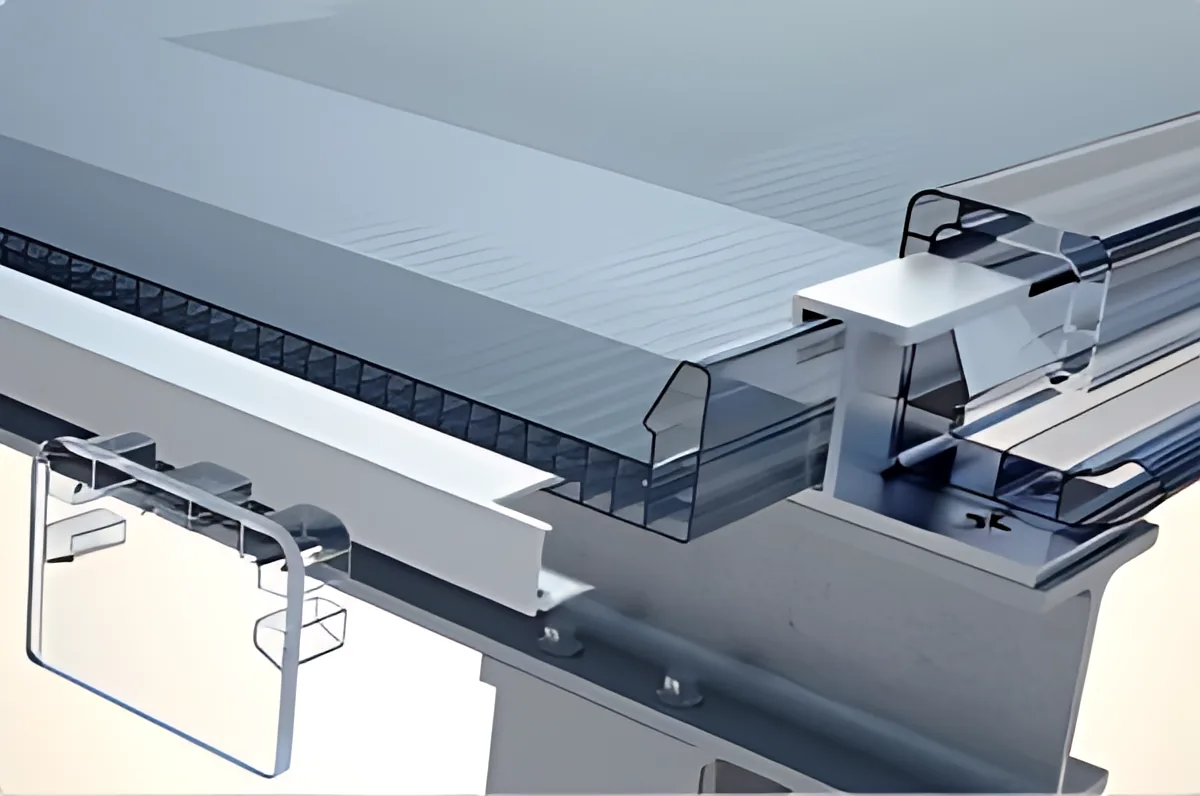

Modular multiwall polycarbonate panels for the construction of flat or curved roofing. The panels are anchored to the supporting structure using specific aluminium brackets to guarantee load strength. Depending on the load capacity values required, or the distance between the purlins of the underlying structures, either polycarbonate cover plates can be used or, for greater strength, aluminium connectors.
Accessories
The arcoPlus® system includes a complete range of accessories to facilitate installation. For correct installation the ends of the air cells in the panels must be heat-sealed to prevent soiling on the inside.

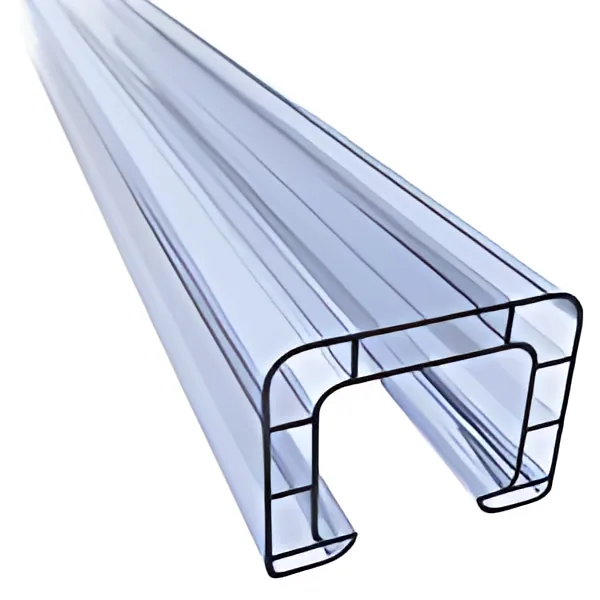

Cover gasket in polycarbonate
2146

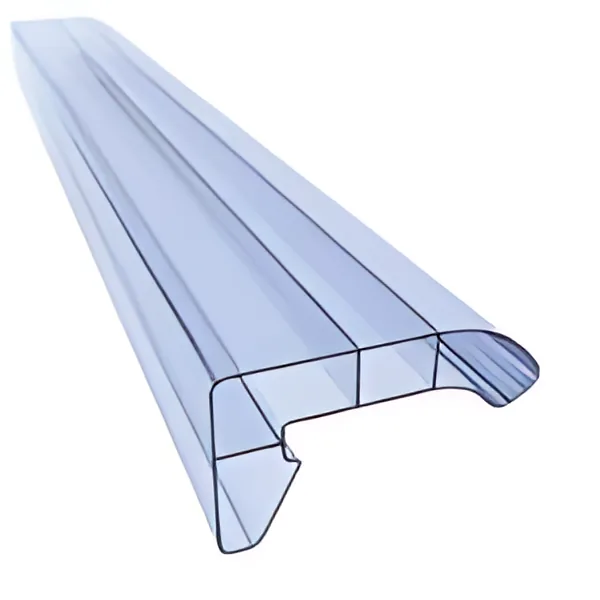

Start profile 684-6104 in polycarbonate
2147

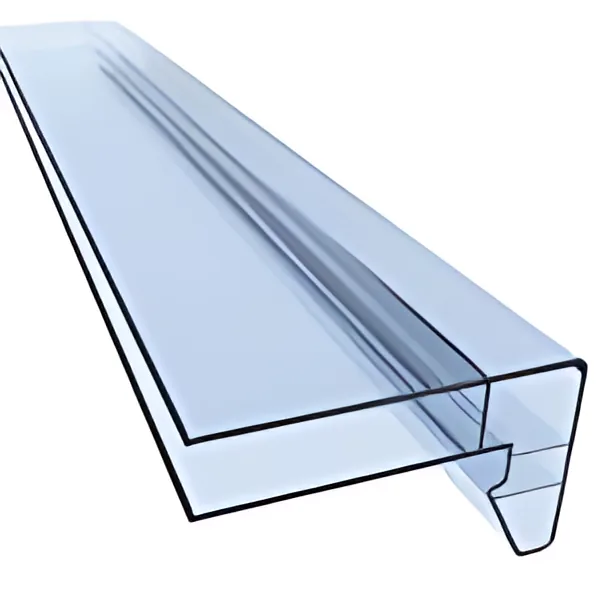

End profile in PC
2148 8 mm, 2265 10 mm, 2250 12 mm

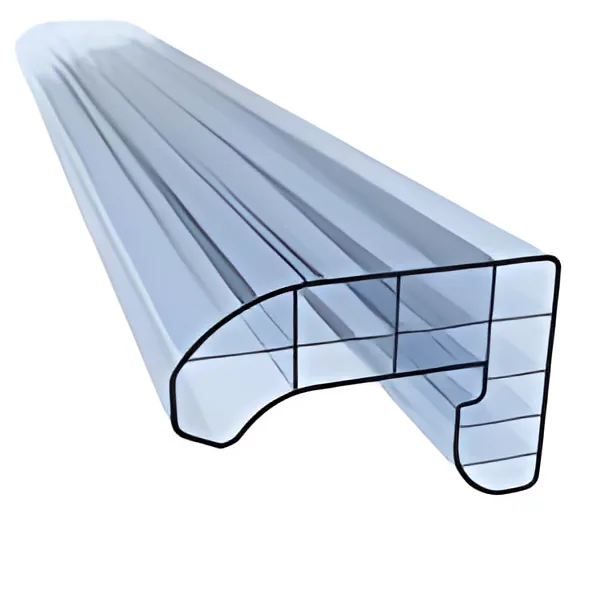

Start profile 6124 in polycarbonate
2245

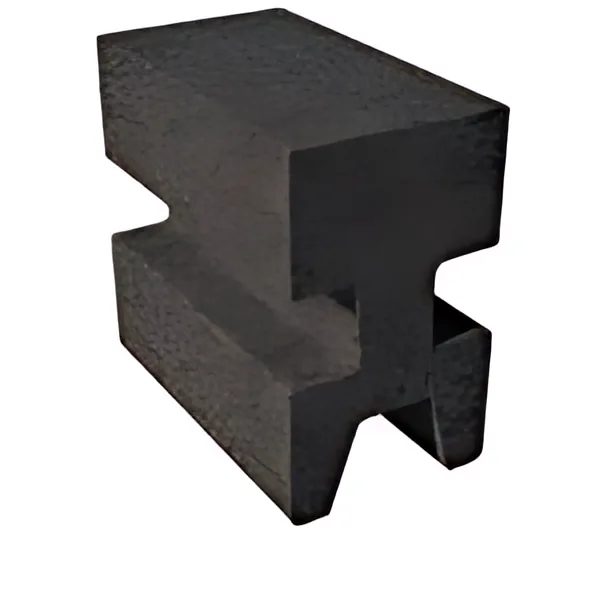

Pad PE-LD for connector
4218

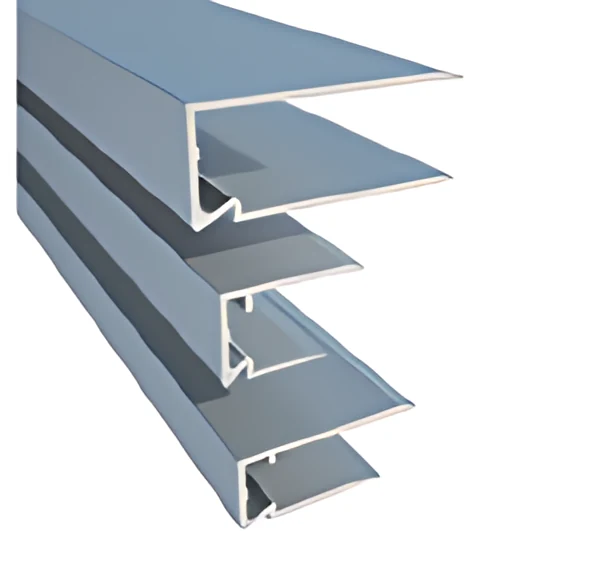

Block cover AL profile
4675/600 8 mm, 4676/600 10 mm, 4677/600 12 mm

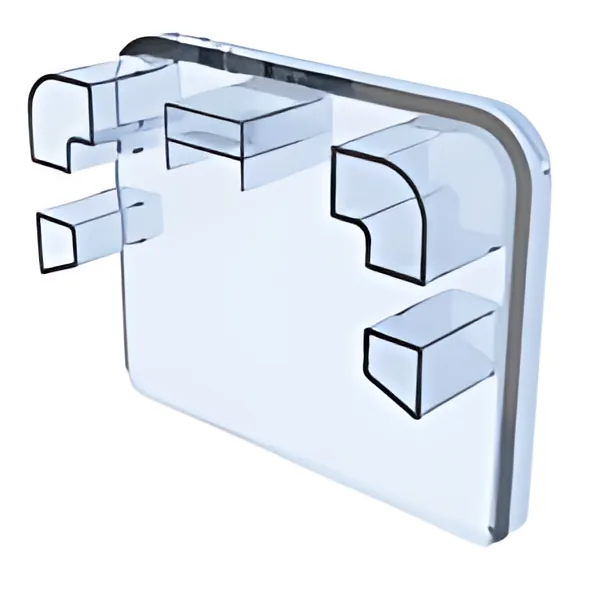

Covergasket stopper
4303

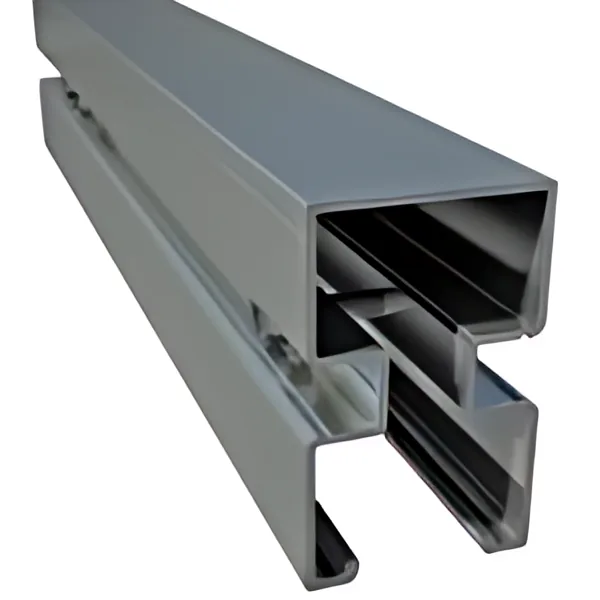

Connector AL profile with screw
4310

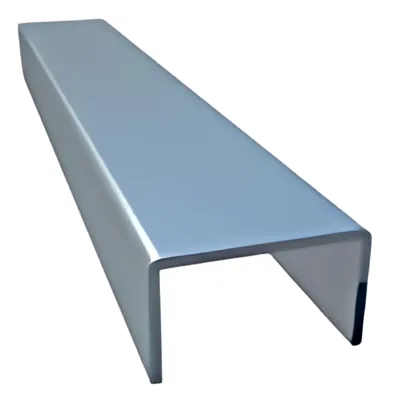

AL eclipse for connector
4319/200

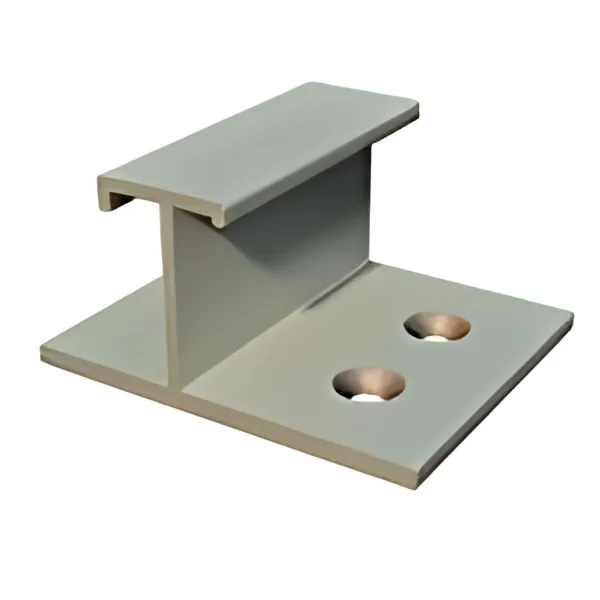

AL plate
4326 8 mm, 4350 10 mm, 4355 12 mm

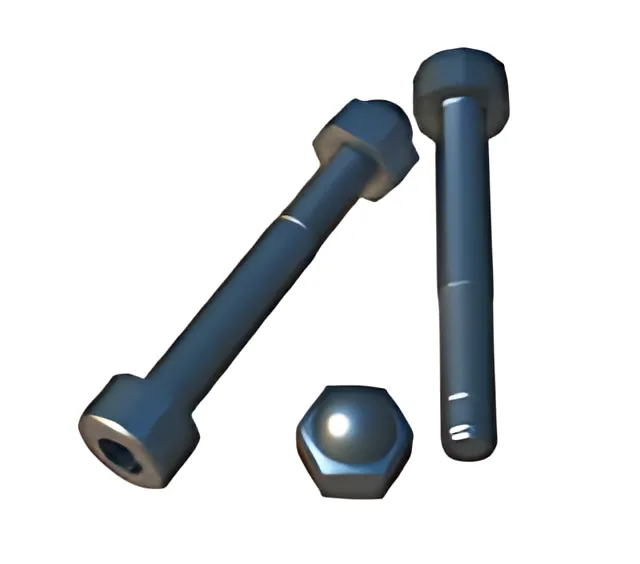

Accessories for connector
4316 M6 nut, 4315 M6 × 20 screw
